ptcsystem®
Sets for internal pipe cleaning
ptcsystem®
Starter-Set
Contents
- Standard ptcsystem® launcher made of high-strength aluminium with a rotatable compressed air connection for ergonomic handling
- 10 tube and/or hose nozzles as desired
- 10 packing units of cleaning projectiles as desired
- Sturdy aluminium transport case
Requirements
- Operating pressure 6 – 8 bar
- Flow rate approx. 800 l/min.
- Air hose with minimum internal diameter of 9 mm
Accessories
- ptcsystem® projectile collector PTC-SR-AB or PTC-SR-AB2
- Projectile verification system PTC-DKS-RL150, consisting of a control unit and a collector
- Balancer PTC-SR-FZ
- Foot switch PTC-SR-FS
ptcsystem®

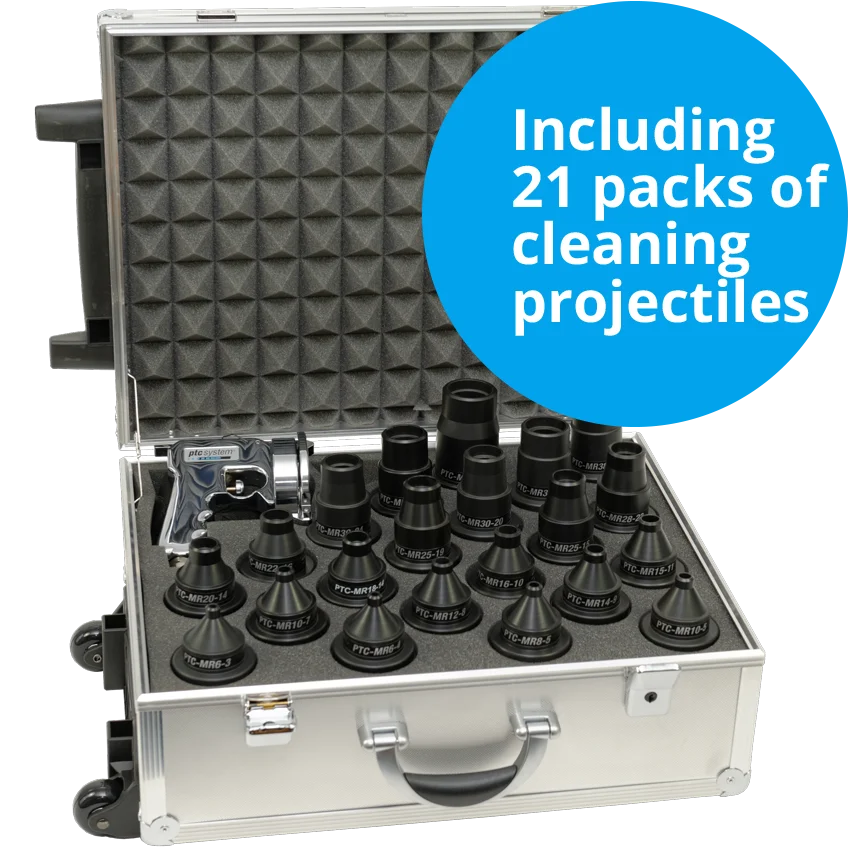

Starter-Set-XL
Contents
- For all common hydraulic tubes according to EN 10305-4 or DIN 2391 with an external diameter of 6.0 – 42.0 mm
- Standard ptcsystem® launcher made of high-strength aluminium with a rotatable compressed air connection for ergonomic handling
- 21 tube nozzles
- 21 packing units of standard cleaning projectiles
- Sturdy aluminium transport case with carry handle
Requirements
- Operating pressure 6 – 8 bar,
- Flow rate approx. 800 l/min.
- Air hose with minimum internal diameter of 9 mm
Accessories
- ptcsystem® projectile collector PTC-SR-AB or PTC-SR-AB2
- Projectile verification system PTC-DKS-RL150, consisting of a control unit and a collector
- Balancer PTC-SR-FZ
- Foot switch PTC-SR-FS
ptcsystem®
Tube-Set
Contents
- Standard ptcsystem® launcher made of high-strength aluminium with a rotatable compressed air connection for ergonomic handling
- 10 tube nozzles as desired
- Sturdy aluminium transport case
Requirements
- Operating pressure 6 – 8 bar
- Flow rate approx. 800 l/min.
- Air hose with minimum internal diameter of 9 mm
Accessories
- tcsystem® projectile collector PTC-SR-AB or PTC-SR-AB2
- Projectile verification system PTC-DKS-RL150, consisting of a control unit and a collector
- Balancer PTC-SR-FZ
- Foot switch PTC-SR-FS
ptcsystem®
Hose-Set
Contents
- Cleaning range for hoses DN6 (1/4″) – DN50 (2″)
- Standard ptcsystem® launcher made of high-strength aluminium with a rotatable compressed air connection for ergonomic handling
- 10 hose nozzles
- Sturdy aluminium transport case
Requirements
- Operating pressure 6 – 8 bar
- Flow rate approx. 800 l/min.
- Air hose with minimum internal diameter of 9 mm
Accessories
- ptcsystem® projectile collector PTC-SR-AB or or PTC-SR-AB2
- Projectile verification system PTC-DKS-RL150, consisting of a control unit and a collector
- Balancer PTC-SR-FZ
- Foot switch PTC-SR-FS
